Brinno Solar Power Kit

ASP1000-P

Extend your long-lasting camera to immortal

The Brinno Solar Power Kit is specifically designed for the Brinno BCC2000 & BCC2000 Plus construction camera bundles. It includes a 10W monocrystalline silicon solar panel with higher conversion efficiency and the Brinno Rechargeable Battery kit. It generates a continuous power supply for the time-lapse camera through direct sunlight.



Rechargeable Battery Pack

Power your camera with limitless energy from the battery kit. The rechargeable kit eliminates the hassle of switching batteries, and extending the lifespan of single charge to infinity.

10W Solar Panel

High efficient conversion rate solar panel that convert the infinite sunlight into reusable energy, ensuring a sustainable and consistent power resource for time lapse cameras or any gadgets.

Always-on for Time Lapse Camera

Truly worry-free recording experiences with continuous power supply to make sure every moment was captured without missing a shot from the time lapse camera.

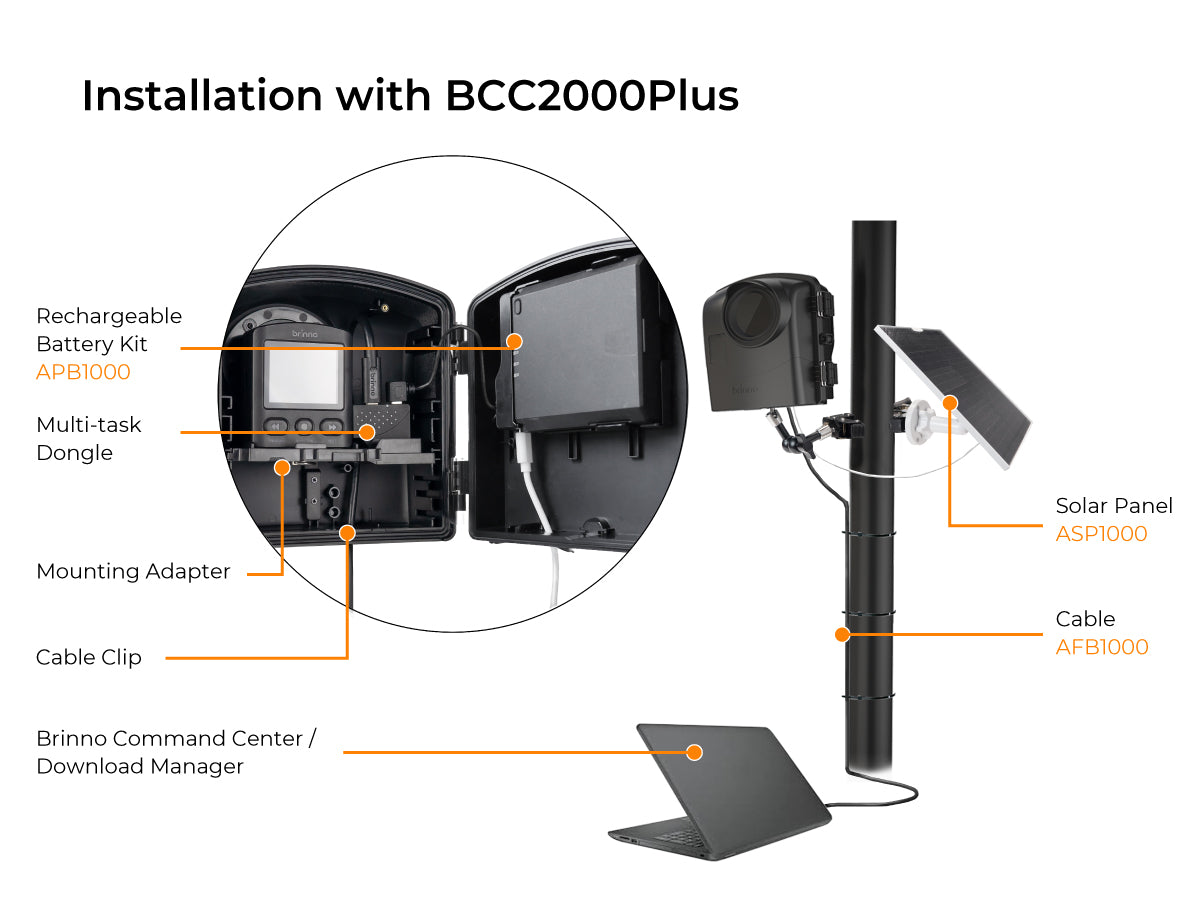

Installation Tips

Compatible Models

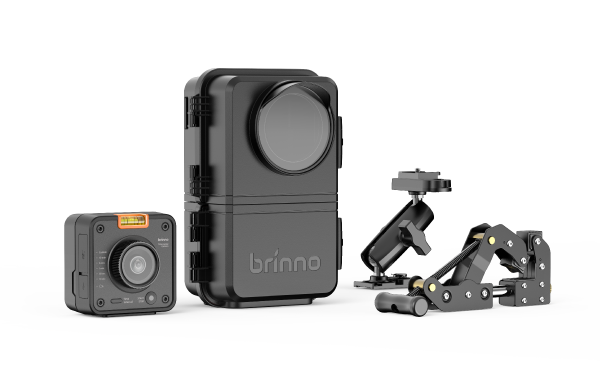

BCC5000

Brinno Construction Camera Bundle BCC2000 Plus

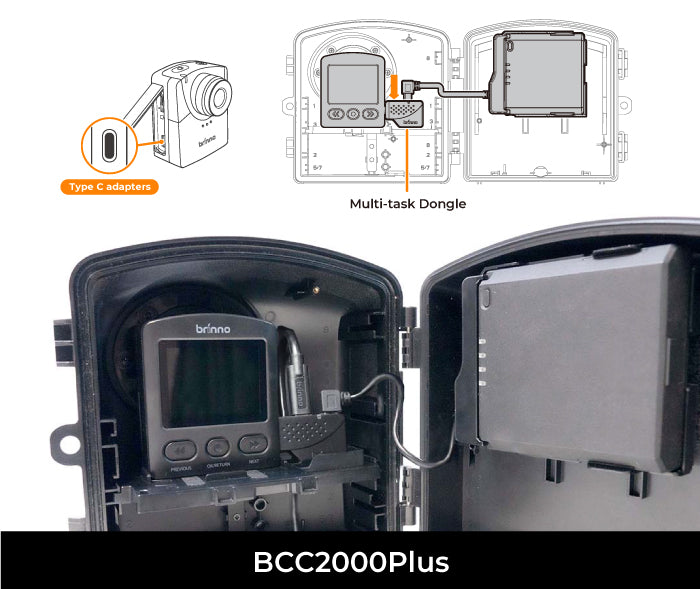

BCC2000/BCC2000Plus

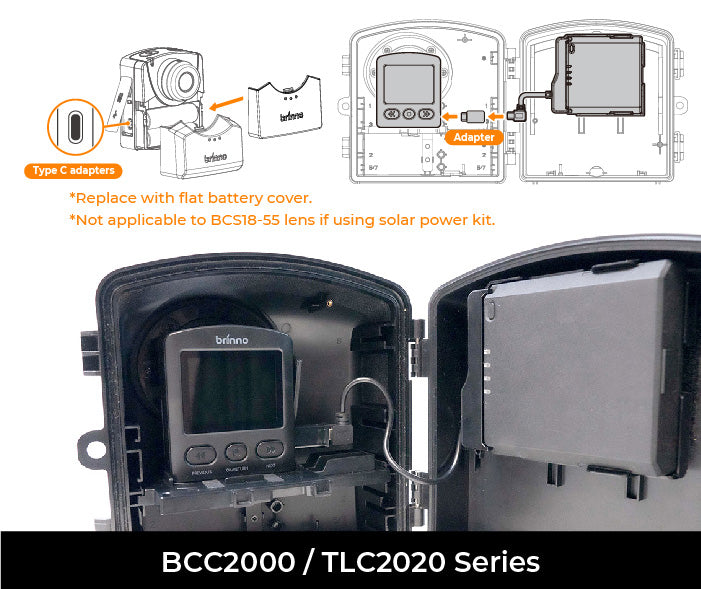

TLC2020 Series

*Requires ATH2000 Power housing and Replace with flat battery cover.

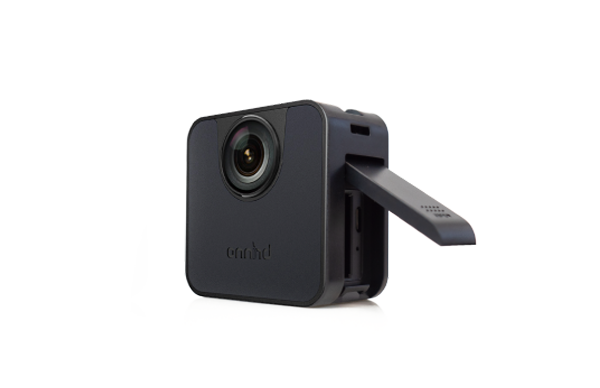

TLC120

*Requires ATH2000 Power housing

Unboxing Video

Specifications

Product / Model NO. Solar Panel / ASP1000
Solar Power Rating    10W
Operating Voltage 5V DC
Power Connection USB-C
Conversion Rate >20%
Works With Brinno Rechargeable Battery Kit (APB1000)
Waterproof IP65
Size (WxHxD) Solar Panel: 8.4 x 10.3 x 0.8 in (214 x 262 x 20 mm)       
USB-C Cable: 9.8 ft (3 m)
Weight 23.2 oz (660 g)



Product / Model NO. Rechargeable Battery Kit / APB1000
Power Source Brinno Battery Pack (MRB1000)
Energy Capacity 12,600 mAh/ 45.4 Wh
Always-On Mode Provides continuous power supply for
low power time lapse camera or IoT application.
Input Port USB-C (support 5V 2A Quick Charge*) (on battery pack)
Output Port
  • Micro USB connector (for Brinno camera)
  • USB-C port
Output Voltage
& Output Current
  • 5V 2A (max. for total two output)
  • Micro USB: continuous output 5V 500mA
    (Max instantaneous output 5V 1A)
  • USB-C: continuous output 5V 1A
Compatible Models
  • BCC2000 & BCC2000 Plus
  • TLC2000/2020 with ATH2000 construction power housing
Ambient temperature -4 °F ∼ 140 °F (-20 °C ∼ 60 °C)**
Size (WxHxD) 3.68 x 3.22 x1.46 in (93.5 x 82 x 27.2 mm)
Weight 9.9 oz (280 g)
Package Contents Brinno Battery Pack (MRB1000) x1;
External Power Adapter;
Hook and Loop Tape

NOTE:
* Support QC (Quick Charge) NOT support USB-PD (Power Delivery)ASP1000-P--QC-vs-PD-charge
**Built-in short circuit protection when over charge, over discharge, over temperature (45℃ Input Cutoff, 60℃ Output Cutoff), under temperature (0℃ Input Cutoff, -20℃ Output Cutoff)
