Extend your Reach!

Brinno Camera Extender Kit AFB1000

Bring your filming to new heights

Increase your reach and extend the capabilities of your BCC2000 with Brinno’s new Camera Extender Kit. This accessory kit will connect your camera with unlimited power, conduct faster data transfers, and provide access to the *Brinno Command Center.

◾ Compatibility : Windows 7, 8, 8.1, 10, & 11 64-bit OS
◾ The battery life of BCC2000 Plus varies according to the length of command center operation. Extensive usage of the command center may result in a significant reduction in battery life.

Give yourself a boost. With the 32ft (10m) long cable get instant access to your camera. Download files onto your laptop and use the new Brinno Command Center to modify camera controls and check filming and battery status. For a truly flexible installation experience, the cable can also be used to connect your camera to external power through a power adapter.

Engineered to withstand the unpredictable construction site environment. Easy time lapse just got easier!

FEATURES

Simultaneous Record and Download

High Speed Data Transfer

32 ft(10m) Ruggedized Cable

Brinno Command Center

External Power

Setup Instruction

Package Contains

Specifications

Model NO. AFB1000

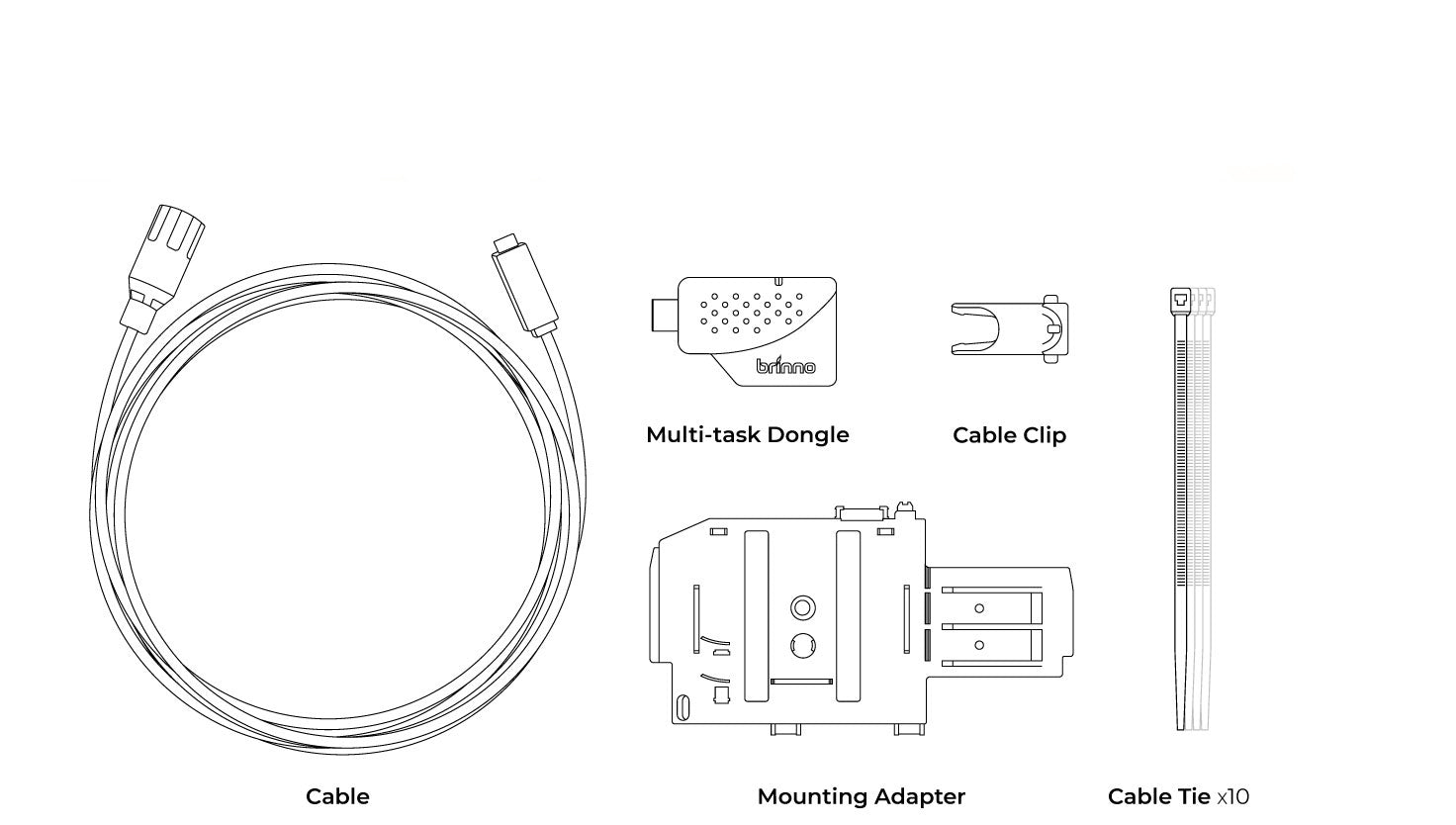

Contents
  • Multi-task Dongle ACB1000
  • 32ft (10m) Ruggedized USB-C Cable
  • Mounting Adapter
  • Cable Clip
  • 10 Cable Ties
Dongle Interface Output: USB-C (to camera)
Input: USB-C (for USB-C cable)
micro USB (for ATH2000 power supplier)
USB-C Cable
  • USB-A Male to USB-C Male
  • Weatherproofing Cap and Seal
  • UV Coating
  • 32ft (10m)
  • Supports USB 2.0 high speed data transferring at up to 200mbps
Mounting Adapter Design for TLC2000 series to be installed into Construction Power Housing (ATH2000)
Requirements BCC2000 (or TLC2000 with ATH2000)
Size (WxHxD) Multi-task dongle ACB1000 : 1.85 x 1.09 x 0.35 in (47.1 x 27.9 x 9 mm)
USB-C cable : 32ft (10m)
Mounting Adapter : 4.9 x 2.7 x 0. 6 in (126 x 69 x 14.7 mm)
Weight Multi-task dongle ACB1000 : 0.33 oz ( 9.3g)
USB-C cable : 15.2oz (450g)
Camera mounting adapter :1.14 oz ( 32.5 g)
